PumpPod 3 Pump Model

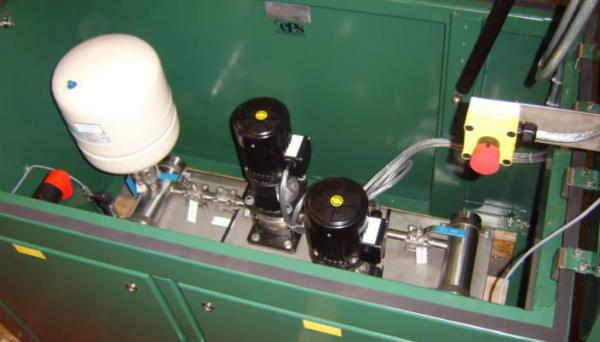

JF Andrews designed and manufacture the PumpPod. It is an integrated pumping solution for industrial, commercial and larger scale application. The PumpPod provides a two pump booster station neatly packaged which operates in a duty - standby arrangement. It is manufactured in Ireland and arrives on site ready to install and commission - it is a plug and play solution.

For further information on the PumpPod see our dedicated website www.pumppod.eu

Engineering:

• Vandal resistant; flush fitting handles and cover locks as specified by the end user
• Radio or telemetry modules installed as required by user

Pump Set

• Welded stainless steel pipe work rated to 16bar (standard unit)
• Available with Grundfos CR vertical pumps
• Stainless steel isolation ball valves before and after each pump
• Stainless steel non return valve on each pump
• All ball and non-return valves are 3 piece for ease of removal
• 10L accumulator vessel Pressure transducer c/w isolation valve for maintenance purposes
• Pumps and pressure transducer are wired via plug and socket to the panel for easy disconnection
• Emergency stop button located in pump section

Control

• Form II panel IP65
• Variable speed drive control of the motors
• PLC control system
• Intelligent operation via Modbus between VSD and PLC
• GSM text alert system options
• User adjustable set points for HMI
• Automatic alternation of the pumps available
• Controls can easily be set as duty, standby or duty, assist, standby
• Monitors the outlet pressure; only operates when required
• Pump running current, hours run and trips are displayed on the HMI control screen.
• Designed to provide operator friendly access during maintenance
• Adjustable set points
• PID Setting
• High/Low Pressure Alarm
• Rotation Time & Min and Max Speed of Pumps
